RH DESIGNS ANALYSER PRO 110V // RH DESIGNS STOPCLOCK PRO 110V

RH DESIGNS ANALYSER PRO 110V

Black and White Enlarging Meter / Timer with Grey Scale Display and built-in Densitometer function

Banish the Test Strip!
This highly-acclaimed enlarging meter-timer combo features our patented grey scale print tone indicator which shows you the tonal range of the print, so you can place important tones and preview the look of the print without the need for endless test strips. Includes a spot-metering probe with densitometer function, a wide range (1 – 240 secs) heavy-duty (750W) timer which can work in intervals of 1/2, 1/3, 1/4, 1/6 or 1/12 f-stops, storage for the characteristics of eight different papers, and a clever burn-in feature which takes the guesswork out of printing. The perfect all-in-one solution for making the highest quality black and white prints – and it can be used for color too!

Our tests (and customers’ experience) with Pyro and other staining developers indicate that the Analyser can be used with stained negatives in just the same way as with conventional developers. The meter will automatically account for the density of the stain.

The latest version features a sensor and measurement subsystem which provides fast response, especially at low light levels, and high stability with changes in temperature and over time. In addition, a Calibration Kit (included) makes calibration faster and easier, and we’ve re-written the User Manual to make it clearer and easier to read. There’s never been a better time to choose an Analyser Pro!

Why the Analyser Pro is different
Enlarging exposure meters often suffer from a number of shortcomings. In many cases, a single reading is taken from a mid-tone area of the negative (or from a diffused image) and exposure based on that reading. This can work quite well but it won’t advise you which paper grade to use.

Enlarging exposure meters which indicate a suggested paper grade do so assuming you want your shadows to be at maximum black and your highlights at paper base white. This isn’t always the case, particularly in portraiture work. And if it isn’t the case, then you’re on your own – back to the test strip!

The Analyser Pro is different because it tells you exactly the shade of grey that you will get on a print for any spot measured area of the negative. You can see the effects of changing the paper grade without making a print – the Analyser's display indicates the changes in print tone for each measured spot as you alter the grade setting. You can manually override the Analyser's suggested exposure time in order to produce a lower or higher key print, and see the expected results before committing a piece of paper. You can even make your own grey scale for use with the Analyser using your favorite materials and processing, so that the Analyser's indications will be as close as possible to the final print.

You no longer need to worry about compensating for dry down (the increase in density of a dry print as compared to a wet one) because the display indicates the tone on the final dry print. For special cases, fine tuning may be accomplished with the built in automatic test strip generator.

All this adds up to a significant saving of both time and materials, and with paper prices rising this can only be an advantage. Darkroom work is much more enjoyable when your success rate is high!

In common with our acclaimed StopClock range, we have designed the Analyser using industrial grade components for maximum reliability. Gold plated switch contacts, fibreglass printed circuit boards and heavy duty relays mean that it should last a lifetime, so we confidently offer a two year parts and labor guarantee. In addition, the Analyser comes with a fourteen day money back guarantee of satisfaction, so why not try one for yourself?

Analyser Pro Features
• Up to eight spot readings of a negative can be taken and the corresponding tonal value of each on the final print will be displayed on the 15 step grey scale.
• Simple controls (harder, softer, brighter, darker) allow print contrast and brightness to be previewed without the use of test strips or prints – saves time and paper.
• Over and under exposure warnings. 12-stop measurement range.
• Exposure times of 1.0 to 240 seconds are calculated automatically by the
• Analyser Pro using the metering probe in conjunction with paper grade and built-in calibration settings. Exposure times can be adjusted manually.
• Basic and burn-in exposures are accurate to 1/12th stop maximum resolution and microprocessor controlled to within a hundredth of a second.
• Clever burn-in feature computes and times the difference between an increased exposure time and the basic print exposure. Makes burning-in a breeze! Simply make the basic exposure, increase the exposure time by the desired amount, then press and hold the Print key – the Analyser Pro subtracts the base exposure from the new time and times the result automatically!
• Adjustable calibration caters for your preferences of paper, processing, and enlarger characteristics for every grade of paper from 00 to 5, including half-grades.
• Automatic reciprocity failure compensation.
• Densitometer mode to help refine your film development.
• Eight individual calibration sets for different papers, surfaces, etc.
• Adjustable calibration caters for your preferences of paper, processing, and enlarger characteristics for every grade of paper from 00 to 5, including half-grades.
• Automatic test strip generation for fine tuning of print exposure; test strips can be generated either as incremental or full exposures.
• Switching capacity of 750 W (500W for 115v versions) handles most enlargers, including cold-cathode types.
• A footswitch is available as an optional extra for hands-free operation – see the accessories page.
• Industrial grade components throughout, including gold-contact switches and heavy-duty relays, for maximum reliability.

Analyser Pro Specification
• Timing accuracy: Better than 1%. Timing repeatability: Better than 0.1%
• Internal measurement resolution: 1/60 stop
• Timing range: 1.0 to 240 seconds per exposure. Timing resolution: 0.01 sec
• Time setting intervals: 1/2, 1/3, 1/4, 1/6 or 1/12 stop; user selectable at any time.
• Automatic Test Strips can be made using the currently set time interval.
• Optional audible seconds tick (“metronome”)
• Measurement spot size: 2mm (0.05 inch) approx. Measurement range: twelve stops, with over and under exposure indication. Up to eight spot measurements per exposure
• Calibration: built-in, user adjustable exposure and contrast settings for all grades from 00 to 5 in half grade steps. Eight individual calibration sets.
• Optional delay to accommodate slow-starting enlargers (e.g some Durst and Kaiser stabilized transformers)
• Switching capacity: (230v versions) 750W per outlet, 750W total. (115v versions) 500W per outlet, 500W total
• Display type: Yellow LED, 4 digits for time and paper grade: 15 segment bar graph for grey scale
• Size: Main unit: WHD 200mm x 65mm x 160mm (7.8 x 2.5 x 6.3 inches),
• Sensor: WHD 80x56x24mm (3.1 x 2.1 x 1 inches) approx. Weight: 2200g approx as shipped
• Accessories supplied: Mains lead, enlarger/safelight connectors, calibration kit, instructions.
• Full two year guarantee, plus 14 day refund if you are not completely satisfied.

Please Note: The Analyser Pro is designed to control enlargers in which the lamp can be switched on and off simply by applying mains power – this covers the great majority of enlargers but excludes some which have closed-loop control systems such as the Durst Autocolor, Fujimoto, etc. A special version is available for the Ilford Multigrade 500 system. We do not support the Ilford Multigrade 400 or 600 systems. If your enlarger is not suitable but you would like the exposure metering functions, consider our ZoneMaster II baseboard exposure meter.

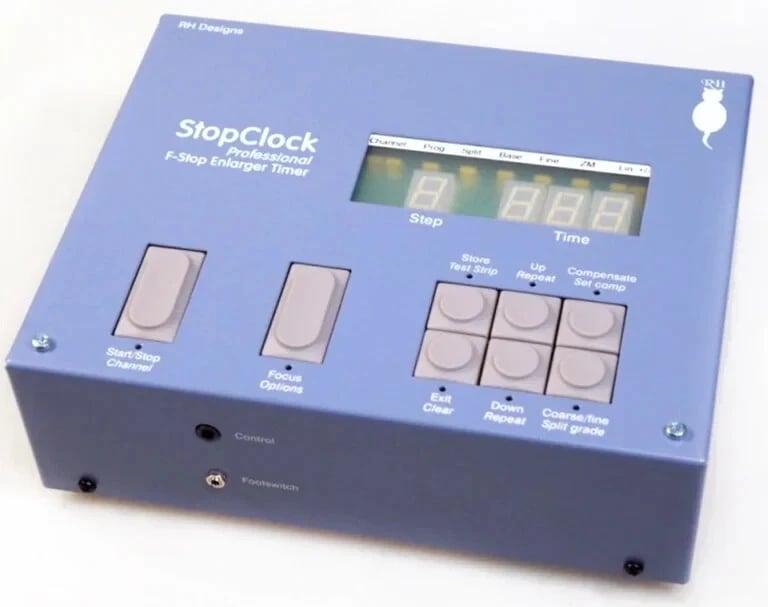

RH DESIGNS STOPCLOCK PRO 110V

Includes:

• Power cord
• Enlarger/safelight connectors
Instructions.
• Features:

• Base exposure time 1.0 seconds to 240 seconds, in steps of 1/24th to 1/2 f-stop (or of 0.1 or 1.0 seconds in linear time mode). Time is controlled to 0.01 seconds
• All exposure times are set in coarse and fine steps of actual exposure rather than simple seconds, producing consistent changes on the paper. The fine step size is 1/24th f-stop (approx 2%). The coarse step size can be set to 1/2, 1/3, 1/4, 1/6 or 1/12 of a f-stop. Coarse/fine button toggles between 1/24th and the set coarse time step
• Nine subsequent exposure times can be programmed, each calculated either relative to the base exposure or the total exposure time thus far. Burn-in exposures are set in steps of 1/12th to 1/2 f-stop. If the base exposure is changed, the burn-in exposures are recalculated to maintain the density relationships
• Two completely independent channels, each having separate base and burn-in exposure times
• Split-grade mode, in which exposure can be controlled using one channel while the second can be used to adjust contrast. Equivalent contrast is displayed in steps of 0.1 grade
• Automatic test strip mode, for quickly producing test strips with 1/12th to 1/2 stop increments either as an incremental exposures or separate complete exposures
• Exposure Compensation of +/-20% to allow for dry-down or and/or toning with respect to a test print
• The clear yellow LED display brightness can be set to one of three levels. The display colour has been chosen to be safe for both colour and black and white printing
• Audible beep at the end of each exposure, and optional seconds tick whilst the enlarger is switched on
• Rugged steel enclosure and high quality components for reliability. Illuminated control buttons
• Can be connected to our ZoneMaster for exposure metering
• Automatic safelight switching; manual (focus) mode; 750 watts (500 watts in 115v versions) switching capacity
• A footswitch is available as an optional extra for hands-free operation – see the accessories page
• Exceptionally easy to use! All timing, including switching between channels, can be controlled from the footswitch

Specs:

• Timing accuracy: Better than 1%
• Timing repeatability: Better than 0.1%
• Exposure setting accuracy: Better than 1%; resolution 1/24th stop.
• Timing range: 1.0 to 240 seconds per step, up to ten steps per channel, two channels
• Timing resolution: 0.01 sec.
• Switching capacity: 750W per outlet, 750W total (230V only; 500W total for 115V version.). Suitable for cold light enlargers
• Display type: Yellow LED, three levels of dimming, 590nm LEDs are safe for color as well as b+w papers (Safe except for direct exposure – dimmer than the filtration control lighting on most enlargers)
• Size: WHD 200mm x 65mm x 160mm (7.8 x 2.5 x 6.3 inches)
• Weight: 2200g approx as shipped.
• Input voltage: 110V
